Beer Cave Glass Door Walk in Cooler Commercial Walk In Refrigerator Freezer

Beer Cave Glass Door Walk in Cooler-  Commercial Walk In Refrigerator Freezer

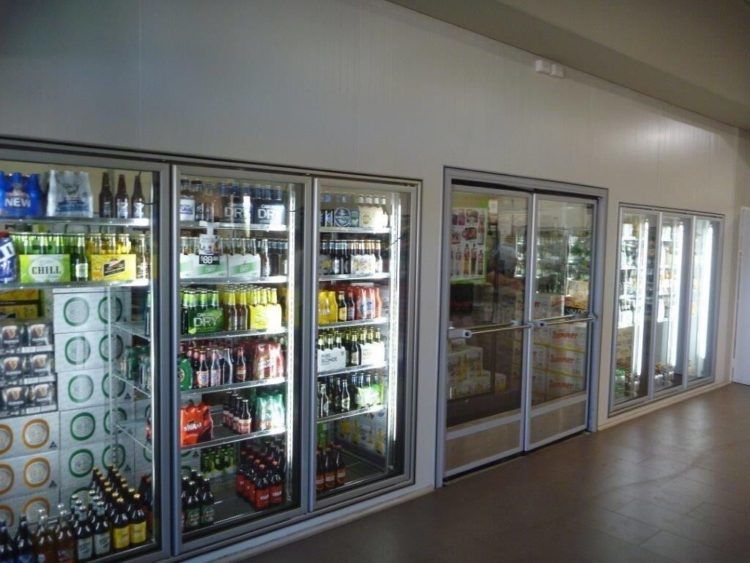

Beer cave is a walk in cooler with pleasant glass display . It consolidates all beer and alcoholic beverages in one area at a consistent, optimal temperature to make sure the good beer tastes and no flavor loss. Beer caves can come in any shape or size. It could be small size like 6ft*8ft, also could be bigger size 30ft*30ft and more, They are all custom designed to fit your plans.

With glass entrance door and viewing window , beer caves creat superior shopping experience for customers, all of beer and alcoholic beverages just right in front of you in an inviting and organized way, cutomers can make easy selection.

Some beer cave designes

Condensing unit:

We use application software to calculate cooling capacity and select the models of compressor,expansion valve and evaporator.

Compressor brands we mainly cooperate with: Bitzer, Copeland.

PU panels:

Panel Thickness: 75mm/100mm/120mm/150mm
Surface of Panels: 0.5mm/0.6mm thickness pre-painted white hot galvanized steel sheet,

                              Embossed Aluminum Stucco Steel Sheet or 304 stainless steel sheet.
Panel Available Width: 500mm - 1000mm
Panel Available Length: 2000mm-12000mm
PU Foam Density: 42 KGS/M3
Heat Transfer Quotients: ≤0.022 W/M2*K
Pressure: ≥0.10Mpa
Cubic Area Change: ≤1% (-30 C-100 C/96h)
Fire Rating: B2

FAQ:

When selecting a walk-in cooler or freezer for a business, what important aspects you will need to consider ?

IT is important to consider all aspects of the cooler or freezer’s design, including the condensing unit, insulation system, climate control, air circulation, light system and shelving system. This will ensure that the cooler or freezer is able to maintain desired temperatures, conserve energy, and increase efficiency in the workplace.
