Supermarket Glass Door Display Walk In Cooler Grocery Convenience Store Gas Stations

Walk In Display Cooler, Walk In Glass Door Cooler for supermarket, grocery &convenience store, gas stations

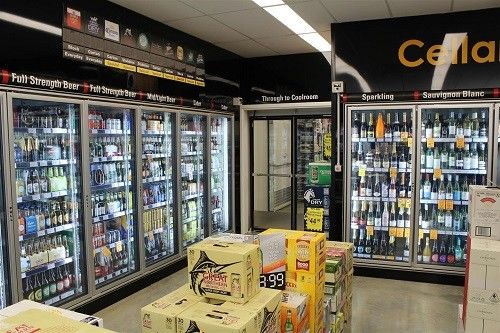

Walk In Display cooler, walk in glass door cooler has two functions: Display + Walk in. It combines glass door display lineups and storage area behind. Glass doors in front of walk in cooler are mainly for products display.Customers can open glass door to take what they like. While one metal access door is equipped at one side of walk in cooler, which is for goods and person access ,mainly for stocking purpose.

Walk-Ins could be built as coolers, freezers or a combination of both. We specialize in building display walk-Ins in any size for applications at restaurants&bars, resorts,bakeries,Delicatessen areas, supermarket, grocers,buchers&fish Mongers, gas station.

Glass Door System:

• Glass with all toughened safety glass
• All glass panels with warm edge spacer
• Double glazed , Gas filled, heated glass doors for Cooler
• Triple glazed , Gas filled, heated glass doors for Freezer
• Vertical fluorescent tubes, LED strips or LEDSTICKS for option
• Clear anodized or powercoated aluminum extrusion
• Manufactured in 1 door to 8 door continuous framing, mullionless
• Hold open arm with auto safety release for easy stocking
• Standard door size : 1800*750mm, Custom Door sizes and combinations of service and personnel entry doors are available on request.

PU panels:

     Panel Thickness: 75mm/100mm/150mm
     Surface of Panels: 0.5mm/0.6mm thickness pre-painted white hot galvanized steel sheet, Embossed Aluminum Stucco Steel Sheet

     or 304 stainless steel sheet.
     Panel Available Width: 500mm - 1000mm
     Panel Available Length: 2000mm-12000mm
     PU Foam Density: 42 KGS/M3
     Heat Transfer Quotients: ≤0.022 W/M2*K
     Pressure: ≥0.10Mpa
     Cubic Area Change: ≤1% (-30 C-100 C/96h)
     Fire Rating: B2

Condensing Unit:

We are experienced on designing and building beer cave walk-in coolers, freezers or a combination of both for food retail industry. We use application software to calculate cooling capacity and select the models of compressor,expansion valve and evaporator.

Compressor brands we mainly cooperate with: Bitzer, Copeland.

Shelving System:

Shelving sytems just fit with glass doors to get maxmum display for the Beverage, dairy and produce. Normally it comes with glass doors.

1. four post shelving system, black & Chrome both available
2. Wire shelving, black & Chrome both available
3. Heavy duty type for storage in walk in cold room

FAQ:

When selecting a walk-in cooler or freezer for a business, what important aspects you will need to consider ?

IT is important to consider all aspects of the cooler or freezer’s design, including the condensing unit, insulation system, climate control, air circulation, light system and shelving system. This will ensure that the cooler or freezer is able to maintain desired temperatures, conserve energy, and increase efficiency in the workplace.
